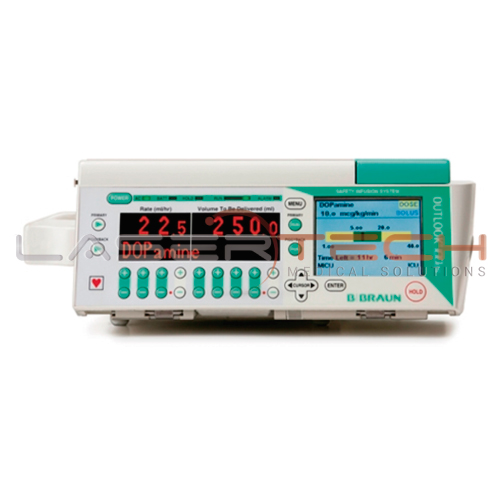

B Braun Outlook 100ES

Equipped with a color-coded keypad and audible key clicks, the safe, reliable and easy to use Outlook® 100ES infusion pump provides comprehensive “at-a-glance” viewing of infusion status on a large color display.

Designed to help prevent IV medication administration errors, the Outlook® 100ES Safety Infusion Pump System’s extensive customizable DoseGuard ™ drug library allows you to set the pump to match your clinical practice.

Intuitive: A “brain” in each pump helps prevent channel confusion and catastrophic pump failures
Versatile: Vertical stacking takes less space
+ KeyGuard ™: Non-numeric keypad with simple arrows to help prevent manual programming errors related to zero vs. decimal entry
Air Trapping Cassette: Catches up to 3 mLs of air helping to reduce nuisance air-in-line alarms
Proven delivery mechanism providing reliable and accurate operation
Real-time display of dose and limit values during infusion for titration safety
Active alphabetic matrix for quick and easy drug selection
Loading Dose and On Demand Bolus configurations for all DoseGuard Drugs

Categories: Infusion pumps, Medical equipments Tags: B Braun Outlook 100ES, Infusion pumps, medical equipments

Description
Reviews (0)

Description

Dimensions

Width: 30.5 cm (12 in)
Height: 11.4 cm (4.5 in)
Depth: 22.2 cm (8.75 in)
Weight: 5 kg (11 lbs)

Power

Power: 120 VAC, 3A, 60 Hz
Grounding Resistance: Meets or Exceeds UL Standard 2601-1
Leakage Current: Meets or Exceeds UL Standard 2601-1

General

Mechanism: Positive Pressure Displacement Reservoir
UL Certified: Yes. Meets or exceeds 2601-1, IPX1 drip rating
Battery: 12V NiMH
Battery Operating Time: 7 hrs at 25 ml/hr
Rate Range: 0.1 to 999.9 mL/hr in 0.1 mL increments
Micro Mode: 0.1 to 99.9 mL/hr in 0.1 mL increments
Volume to be Delivered Range: 0.1 to 9,999.9 mL in 0.1 mL increments
Occlusion Pressure: Adjustable Settings: 75, 100, 200, 300, 400, 500, and 750 mmHg
KVO Rate: 3 mL/hr or selected rate whichever is lower
Volumetric Accuracy: ± 5%
Alarms: Air-in-line, Hold Time Exceeded, Low Battery Warning, Plug In Alarm, DoseGuard ™ Alert, RateGuard ™ Alert, Downstream Occlusion, Check Set, Empty Bag, Upstream Occlusion, System Error
Tubing: Horizon® Pump Sets
Modes / Features: DOSE Mode with DoseGuard ™ Drug Library, Primary and Piggyback Modes with RateGuard ™ Solution Library, Loading Dose and On-demand Bolus Modes, Profile Mode, Program Mode, Set Time and Volume, Schedule Next Run, Micro Mode, (x) Mode, Epidural Mode
Custom Configuraton Software: Outlook® ES Pump Configuration Editor Software (Required-One time fee, unlimited use license)
