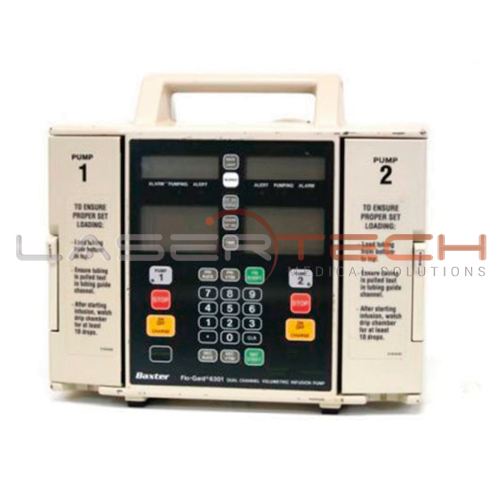

Baxter 6301 Infusion Pump

The Baxter Flo-Gard® 6301 dual-channel volumetric infusion pump can deliver a wide variety of fluids over a wide range of infusion rates.

Dual IV Volumetric Pump

Flow control occlusion alarm

Calculation of the flow

Scheduled delivery profiles

Incremental flow

Automatic restart once the occlusion is cleared

Automatic piggybacking for side medications

Description

Flow range 1 – 99.9 mL / hr in increments of 0.1 mL / hr and 1 – 1,999 mL / hr in increments of 1 mL / hr
VTBI range 1 – 9,999 mL
Alarm log 10 latest alarms
Dimensions 32.5 cm W x 13 cm W x H 29 cm (13 “x 5.1” x 11.4 “)
Weight 8.1 kg (11.6 pounds)
Battery 12 volts, 2.0 amps, sealed lead acid
Battery recharge 80% charged within 8 hours
Battery life 6 hours at 1,400 mL / h (4 hours with both channels operating at 1 – 1,400 mL / h
Biomed replaceable power cord 2.75 m (9 feet)
Leakage current less than 50 μA
0.8 amp fuse, 250 volts, slow
Communications port RS232 serial port
Power requirements 115 VAC, 60 Hz, 50 W
