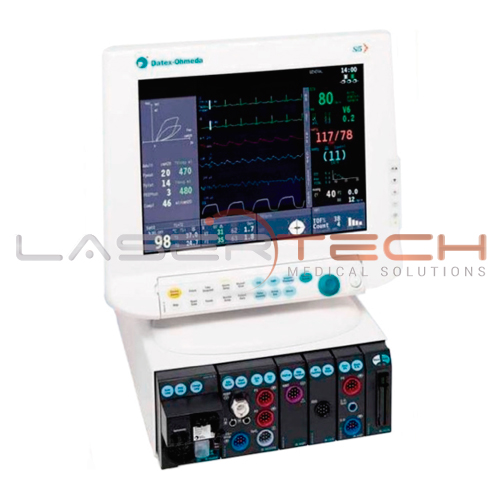

GE Datex Ohmeda S / 5 Anesthesia Monitor

The Datex-Ohmeda S / 5 Monitor offers you the time and freedom to effectively control your patient. It offers everything you need for effortless patient monitoring in the OR and beyond – a full range of monitoring parameters, intuitive use, workstation configurability, transparent device integration and data transfer.

  • The central unit and the screens are physically separate components
  • 4 display options with integrated monitor controls: 15 “or 17” high resolution color video display with 10.4 “or 15” flat screen color LCD
  • Design and colors of the screen configurable by the user
  • Support for up to 8 waveforms on the screen
  • Support for the second and third screen configurable by the user with different waveforms and numerical information
  • Alarm system dedicated to anesthesia
  • Display page and alarm setting
  • 10-minute graphic mini-trends referenced to set alarm limits
  • Automatic alarm functions
  • 6 modes configurable by the user and special mode of cardiac bypass
  • Numerical and graphic trends 24 hours
  • Split screen capability to show ST, Spirometry Loop, EEG, EP or MiniTrends permanently
  • 4 graphical and numeric trends configurable by the user
Formulario de Contacto Productos
Primer y segundo nombre
Apellidos completos
PARA MAS INFORMACIÓN CONTÁCTENOS AL:

Clic Aquí-Enviar mensaje a WhatsApp

+57 304 355 13 63

+57 4 322 36 03

+1 707 294 8221

Categories: , , Tags: ,

Description

general

  • ECG, NIBP, SpO2, Temp, 2-IBP, Rec, CO2 and 5 Agent. Color screena

Dimensions

  • Height: 13.4 inches (340 mm)
  • Width: 13.2 inches (335 mm)
  • Depth: 8.1 inches (205 mm)
  • Weight (without modules): 24 kg (11 kg)

Power

  • Voltage and frequency range: 100 to 240v ± 10%, 50/60 Hz
  • Maximum power consumption: 140 VA
  • Protection class: Class I
  • Grounding: hospital grade

Monitor

  • Screen size: 12.1 diagonally
  • Screen type: Active matrix color TFT LCD
  • Screen resolution: SVGA resolution, 800 x 600
  • Number of traces: up to 8
  • Design and colors of the screen: configurable by the user. Integrated control panel with direct function keys, menu keys and ComWheel ° for selections and settings in the menus

Drums

  • Type: Built-in NiMH battery (2 pcs)
  • Capacity: Up to 1.5 h typical at full load at 23 ° C
  • Recharge: When connected to the electrical network
  • Charging time: 10 hours at full capacity
  • Battery operation alarm
  • Indicator: Battery bar displayed on the screen

Trends

  • Graph: All parameters, selectable times between 30 min to 72 h
  • Numeric: continuous measurement parameters sampled every 5 minutes, updated NIBP and PCWP values ​​after each measurement. In addition, the marker activates the numerical update of the trend
  • Trend curve: in graphic and numerical tendencies
