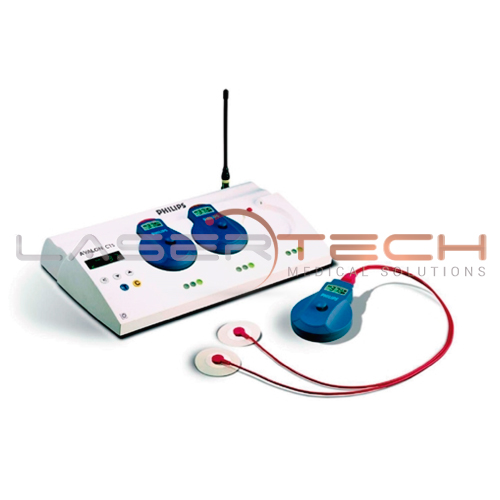

Philips Avalon CTS M1351a

The Cordless Avalon Transducer System (CTS) helps to transform labor and delivery, offering mothers and caregivers the flexibility they seek, allowing continuous and comfortable fetal and maternal monitoring with exceptional mobility. Avalon CTS helps provide a constant and clear picture of the patient’s condition to trust in decision-making.

Wireless toco transducer: externally measures uterine activity
Wireless ultrasound transducer: measures fetal movement and heart rate
Bed identifier: matches the transducers and the base stations of each bed
The base station receives the transducer signals: and recharges the transducers plugged in
The plug-and-play transducer with automatic screen design, in combination with Philips fetal monitors, allows you to focus on patient care, not on the system
Transducer status indicators: clearly shows how the system works at all times
Slot position indicator: helps ensure that each transducer returns to its correct position
Wireless ECG transducer: measures direct fetal ECG or maternal ECG
Battery charge indicator: shows the charge status (batteries run at least 16 hours

Description
Reviews (0)

Description

Philips Avalon CTS M1351a Specifications

Dimensions of the base

Size mm / (in): width x depth x height 350 x 240 x 75 (13.8 x 9.5 x 3.0 in)
Weight 2.5kg / 5.5 lbs without transducers

Dimensions of the transducer

Size (diameter) <10 cm / 3.94 in
Weight <140 g / 4.8 oz

Power

Supply voltage 100 VAC to 240 VAC ± 10%
Supply frequency range 50 Hz to 60 Hz
Consumption 15 VA

Base station

Type of protection against electric shock: Class I equipment
Input sensitivity Input sensitivity -110 dBm @ 30dB Signal-to-noise ratio
Rejection of the image Image rejected> 80dB
Ranges
- Reach range (line of sight) approximately 100 m / 300 feet
Antenna Input impedance 50 Ω
Water Entry Protection Code IP X1 (protection only against drops of water falling vertically)

Monitor interface

I touch Exit
- Precisión ± 0,5% por 100 mmHg (sin el transmisor incluido)
- Offset ± 5 Unidades (sin el transmisor incluido)
- Rango 0 a 4V
Rango de voltaje
- Rango de voltaje US 4mVpp a 4Vpp
- ECG Rango de voltaje 0.1Vpp a 4Vpp

Batería

Tipo Ion de litio
Capacidad> 16 horas (> 700mAh)
Vida> 500 ciclos de carga / descarga (con batería nueva, a 25 ° C / 77 ° F)
Tiempo de almacenamiento del transductor
- ≥ 1 año a 25 ° C / 77 ° F (batería llena)
- ≥ 1 mes a 25 ° C / 77 ° F (batería vacía)
Tiempo de recarga
- 100% de carga <3 h
- 66% cargado ≤ 1h
Corriente de descarga forzada aprox. 45mA
Corriente de fuga de descarga en parada @ Vbat = 3 V, 25 ° C 20 μA (típico), 70 μA (máx)

Unidad RF

Potencia nominal de salida RF -12 dBm ± 6 dB ERP
Rango de Frecuencia Portadora Ver Bandas de Frecuencia
Frecuencia mínima de la banda de frecuencia por opción 10 MHz
Espaciamiento entre canales de 25kHz o 12.5kHz

Especificaciones generales del transductor

Resistencia a golpes Resiste una caída de 1m en la superficie del concreto con posibles daños estéticos
Usabilidad Underwater 0.5m / 1.64 ft
Código de protección de entrada de agua IP 68 (inmersión de 0,5 m / 1,64 ft durante 5 horas)

Ambiental

Rango de temperatura
- Carga de 0 ° C a 45 ° C (32 ° F a 113 ° F)
- Funcionamiento 0 ° C a 45 ° C (32 ° F a 113 ° F)
- Almacenamiento (sin batería) -20 ° C a + 60 ° C (-4 ° F a 158 ° F)
- Almacenamiento con batería Depende del nivel de carga inicial y de la temperatura (el tiempo de almacenamiento disminuye significativamente a altas temperaturas (> 45 ° C / 113 ° F)
Rango de Humedad
- Funcionamiento 5% a 95% de humedad relativa @ 40 ° C / 104 ° F
- Almacenamiento 5% a 85% de humedad relativa @ 50 ° C / 122 ° F
Rango de Altitud
- Funcionamiento ≤ 3000m / 9800 pies
- Almacenamiento ≤ 15000m / 49000 pies
