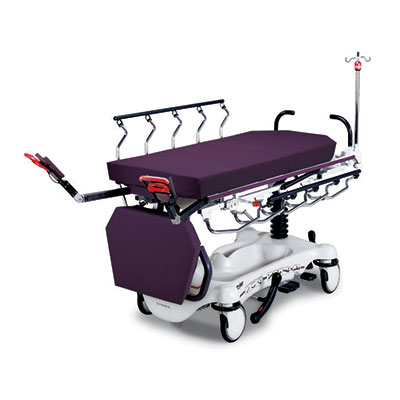

Stryker 1061 Gynnie

Description

• • Ultra Comfort Mattress 4 inches (10 cm) with sealed seams
  • Omni Surface ™ wheels 8 inches (20 cm) with wheel covers
  • Patient surface 26 inches (66 cm) wide
  • Double cylinder pneumatic backrest
  • Double pedestal hydraulic system with constant speed descent
  • Hydraulic foot control system mounted on the double side
  • Direction of the retractable fifth wheel
  • Four-wheel brakes and steel rings with double-sided and head activators
  • Glideaway ™ side rails
  • Integrated storage tray with oxygen bottle holder
  • Folding foot section fixed permanently
  • Fixed foot supports
  • Emerging push handles
  • Roller bumpers
  • Two receptacles IV
  • Unique one-hand release lever for foot section

  Stryker 1061 Gynnie Specifications

  general

  • Model number 1061
  • Total length 81.5 “(207 cm)
  • Average width
    • Siderails Up 31.5 “(80 cm)
    • Siderails down 26.75 “(68 cm)
  • Weight Capacity 500 lbs (227 kg)
  • Height range (to the top of the bunk)
    • High 35 “(88.9 cm)
    • Under 22 “(55.9 cm)
  • Positioning of the bunk
    • Back 0 ° – 90 °
    • Gatch knee 0 ° – 90 °
    • Trend / reverse trend. ± 18 °
  • Maximum angle 87.5 °
  • Patient’s surface 26 “x 77” (66 x 196 cm)
  • Siderails 13 “x 39” (34 x 99 cm)
  • Diameter of the shuttle 8 “(20 cm)
  • Separate the point from the wall 64 “(162.6 cm)
