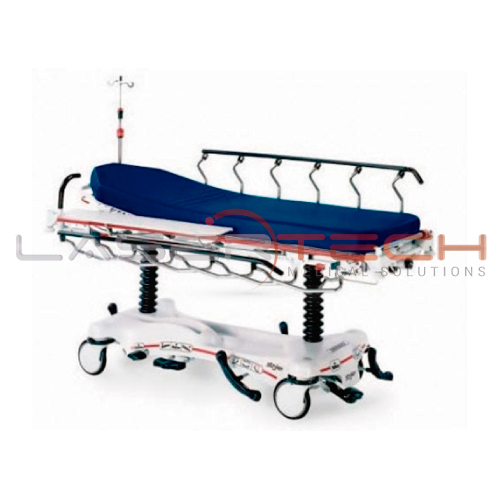

Stryker 1710 Renaissance Series

Description

• Ultra Comfort Mattress 3 “(8 cm) with sealed seams
• Omni Surface ™ wheels 6 “(15 cm)
• 78 “(198 cm) patient surface
• Quadra Channel ™ stabilizer lifting system
• The lateral beams allow the separation of fluorine
• Four receptacles IV
• Four-wheel steel brakes with double side activators
• The backrest rises to 80 °
• Removable foot section (0 ° – 50 °)
• 20 ° Trend./15 ° reverse trend
• Left and right lateral tilt ± 15 °
• Ultraview berth cover for fluoroscopic access without obstructions
• Three-sided foot controls for lifting / lowering functions
• Direction of the retractable fifth wheel
• Low profile base with thermoformed hood
• Rails of full-length surgery accessories

Stryker 1710 Specifications

Dimensions

• Outside length: 84 “(213 cm)
• Average width:
  • Siderails Top: 34.5 “(88 cm)
  • Siderails below: 34.5 “(88 cm)
• Weight capacity: 500 pounds (228 kg)
• Height Reach: (to the top of the bunk)
  • Height: 35.5 “(90 cm)
  • Low: 22 “(56 cm)
• Positioning of the litter:
  • Backrest: 0 ° – 90 °
  • Knee joint: 0 ° -30 °
  • Trend / Reverse trend: t: ± 18 °
• Patient surface: 29 “x 76” (74 x 193 cm)
• Handrails: 13 “x 55” (33 x 140 cm)
• Diameter of the shuttle: 8 “(20 cm)
